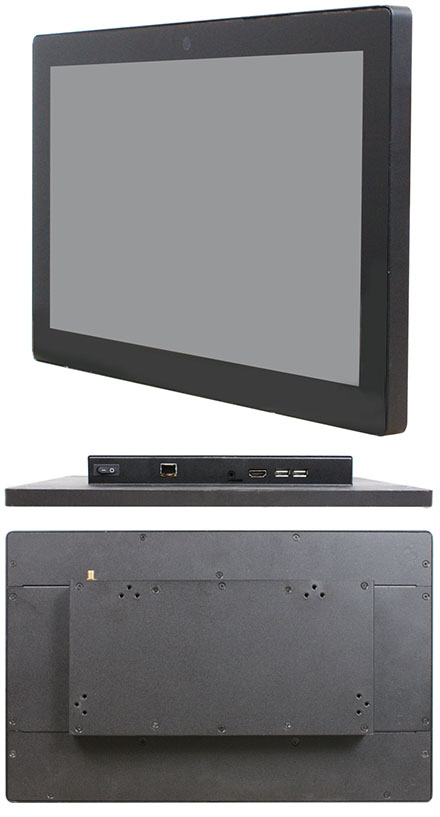

Jetway HPC-P133 (13.3" Panel PC, ARM Cortex RK3288, 2GB RAM, 8GB Flash ROM, POE Input)

Jetway HPC-P133 (13.3" Panel PC, ARM Cortex RK3288, 2GB RAM, 8GB Flash ROM, <b>POE Input</b>)
  • POE Power Input !
  • ARM Cortex RK3288 !
  • Android 5.1/9.0, Debian 9.0 !
  • IP65 Front !



  • 13.3” 350 nits TFT LCD with LED backlight
  • ARM Cortex RK3288 CPU, 4x 1,8 GHz
  • Onboard 1333/2GB DDR3L DRAM
  • Onboard 8G Flash ROM
  • Support Android 5.1/9.0 or Debian 9.0
  • Front IP65 for protection against water and dust
  • Support PoE input


Share

609.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
 Model  HPC-133  HPC-P133
 Display
Front Bezel – IP65, NEMA 4 rugged protection, metal front bezel
Display Type – 13.3″ With LED Backlight
Brightness (cd/m²) – 300 nits
Display Color – 262K
Resolution – 1920 x 1080 @ 60Hz resolution
Viewing Angle (H/V) – 170°/170°
Pixel Pitch – 0.153 x 0.153mm mm
Aspect Ratio – 16:10
Contrast Ratio – 800:1
Response Time – 35 ms
 Touch Screen
Type – Projected capacitive type
Active Range – 355.0 x 197.0mm ±0.3mm
Transparency – ≧ 85%
Surface Hardness – ≧ 6H (ASTM D3363, pressure 1N/45°)
Operating Force – ≦ 50g
 Case
Panel Material – Aluminum
Case Material – Iron
Color – Black
Coating Requirement – Spray Paint
 Main System
CPU – Rockchip® ARM Cortex A17 1.8GHz/QC processor
RAM – Onboard 1333/2GB DDR3L DRAM
Flash ROM – Onboard 8G Flash ROM
Watchdog Timer – 256 levels, 0~255 sec.
Speaker – 2* 2W/8Ohm
Camera – 1* 500W USB (Option)
OS Support – Android 5.1/9.0 or Debian 9.0
 Expansion
Expansion – 1* Micro SD socket
 PoE
Regulatory Compliance – N/A – IEEE802.3af (PoE)
Input Power – N/A – 44~57V input
Pass Through Data Rates – N/A – 10/100/1000 Mbps
Power Consumption – N/A – 12.5W
 I/O Connector
I/O Connector – 2* USB2.0 (USB1 Co-lay OTG)
– 1* HDMI 1.4
– 1* AUDIO(Line-out +MIC)
– 1* Micro SD Socket
– 1* Power Button
– 1* RJ45
– 1* DC jack 		– 1* PoE PD
 Power Input
Power Input – 12V DC-in – 44~57V input
 Power Consumption
Power Consumption – 12.5W
 Dimensions
Case Dimensions – 337.8 * 211.4 * 39.0mm
 Compliance
Compliance – CE, FCC, IP65(Front)-Option
 Environment
Temperature – Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 60° C
 Safety
Shock – 15G, 11ms duration
Vibration – 5~500Hz/1 Grms
Data sheet Download (PDF)
Data sheet Print view
