HPE EL10/GL10 IoT MiniPC (Intel E3826 Dual-Core Atom, 4GB RAM, 32GB SSD, 2x LAN, SIM Slot) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !

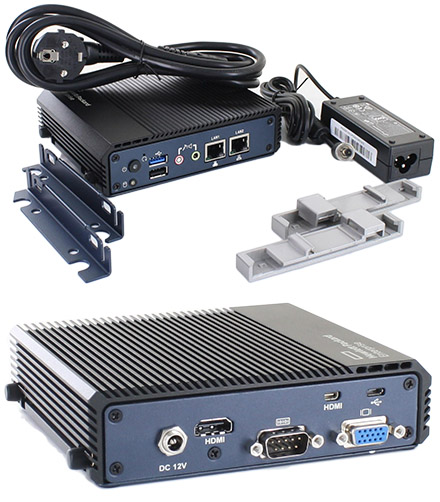

HPE EL10/GL10 IoT MiniPC (Intel E3826 Dual-Core Atom, 4GB RAM, 32GB SSD, 2x LAN, SIM Slot) [<b>FANLESS</b>]
3D 360° View
  • 2x Gigabit LAN !
  • Metal enclosure !
  • SIM Slot !
  • 847976-B21

The HPE EL10/GL10 IoT Gateway is an entry level ruggedized compute solution designed for light data aggregation and acquisition.

The HPE GL10 IoT Gateway is a value solution that comes optimally configured with an lntel® Atom® CPU, 4 GB RAM, 32 GB SDD Storage and an expansive I/O selection.

A low power solution utilizing 12 Volts DC with typical total power consumption of 10.5 Watts.

Two PCIe mini card slots enable a host of connectivity options that are customer upgradeable providing a strong foundation for future growth requirements.

Complete solution out-of-the-box that is easy-to-use and quick-to-deploy including a universal p
[more]

Share

The HPE EL10/GL10 IoT Gateway is an entry level ruggedized compute solution designed for light data aggregation and acquisition.

The HPE GL10 IoT Gateway is a value solution that comes optimally configured with an lntel® Atom® CPU, 4 GB RAM, 32 GB SDD Storage and an expansive I/O selection.

A low power solution utilizing 12 Volts DC with typical total power consumption of 10.5 Watts.

Two PCIe mini card slots enable a host of connectivity options that are customer upgradeable providing a strong foundation for future growth requirements.

Complete solution out-of-the-box that is easy-to-use and quick-to-deploy including a universal power kit (USA, UK, EURO and JPN) as well as a universal mounting kit in support of DIN and wall mount applications.

Processor Intel Atom E3826 up to 2x 1,4Ghz
Chipset Integrated with SoC
Graphic Intel® HD Graphics (integrated with SoC)
Memory 1 x 4GB SO-DIMM LOW Voltage (DDR3L)
Expansion slots 1x PCI Express Full-Mini Card Expansion Slot – Slot #1
1x PCI Express Half-Mini Card Expansion Slot – Slot #2

Slot#1 can also be used for mSATA
Slot#1 and Slot#2 support PCIe and USB signaling
Network Controller 1x Intel® i210AT - One (1) 10/100/1000Mbps Ethernet Port
1x Realtek 8111G – One (1) 10/100/1000Mbps Ethernet Port
Storage mSATA Slot
2.5" Drive bay (32GB SSD included)
Interfaces Power Input - IEC 60130-10 Type A (5.5mm x 2.5mm) w/ threaded locking ring support
1x RS-232 Serial Port – switchable to RS-422/485 4-wire by internal ribbon cable changes
2x USB 2.0 Ports – 1 standard (Type-A) and 1 Micro-AB
1x USB 3.0 Port - 1 standard (Type-A)
1x VGA Port – supports 2560 x 1600 @ 60 Hz
2x HDMI Port – 1 standard (Type A) and 1 micro (Type D), supporting 1920 x 1080 @ 60 Hz
1x Mic In and One (1) Audio Out
Power On/Off Button & LED
Drive LED
System Reset Button
4x pre-wired antenna attach points for wireless module options

2 x WWAN SMA Female
2 x Wi-Fi RP-SMA Female
Power Supply External AC 36W (12V, 3A) universal power supply
System Fans None. Passively cooled fan less product
OS Support Microsoft Windows 7/8/10
Microsoft Windows IoT Core
Microsoft Windows Server
Canonical Ubuntu Snappy Core
CentOS
Linux
Security I/O port disablement
BIOS password
UEFI secure boot
HPE Aruba secure VPN (For protecting remote connections)
HPE Aruba ClearPass (For authenticating edge devices)
TPM TPM 1.2 (Infineon SLB9635) is embedded on the system, and can be enabled and disabled using the BIOS
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Win7/10 Driver Download
