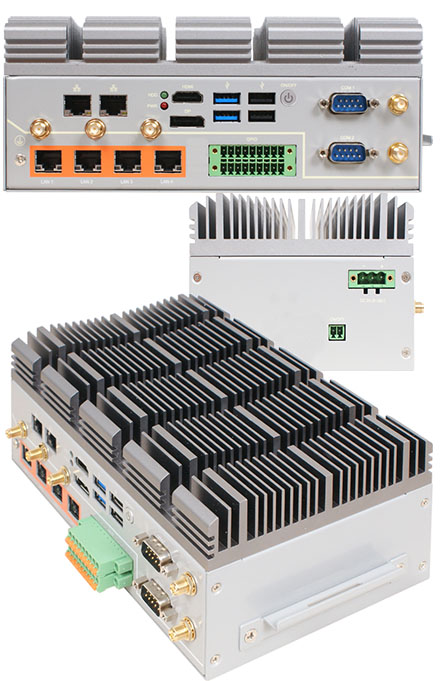

Jetway HM-5004S (Intel Whiskey Lake Mobile U i5-8265U) [6x GbE, 12-36V OCP/OVP Input, FANLESS]

Jetway HM-5004S (Intel Whiskey Lake Mobile U i5-8265U) [6x GbE, 12-36V OCP/OVP Input, <b>FANLESS</b>]
  • Intel Whiskey Lake !
  • Robust !
  • DIN-Rail Mount !
  • Fanless !

The HM-5000S series Fanless system features the Intel Gen. 8th/10th Core I Processor power, with rich IO and excellent heat dissipation solution. HM-5000S series supports 12~36V power and Over-voltage & Over-current protection, and remote power switch by terminal block connection.

HM-5000S supports rich internal IO options: Dual Channel SODIMM, M.2 M Key with support NVMe SSD, M.2E Key for Wi-Fi6 Module installation, and M.2 B Key for 4G/5G module connection in a compact size.


  • Intel Gen. 8th/10th Core i U-Series CPU
  • 2* SO-DIMM DDR4 2400/2133 Dram (Max 64GB)
  • 2* RS232/422/485, 6* GbE
  • 16-bit GPIO
  • Support 4G/5G (M [more]

    Share

1039.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:

The HM-5000S series Fanless system features the Intel Gen. 8th/10th Core I Processor power, with rich IO and excellent heat dissipation solution. HM-5000S series supports 12~36V power and Over-voltage & Over-current protection, and remote power switch by terminal block connection.

HM-5000S supports rich internal IO options: Dual Channel SODIMM, M.2 M Key with support NVMe SSD, M.2E Key for Wi-Fi6 Module installation, and M.2 B Key for 4G/5G module connection in a compact size.


  • Intel Gen. 8th/10th Core i U-Series CPU
  • 2* SO-DIMM DDR4 2400/2133 Dram (Max 64GB)
  • 2* RS232/422/485, 6* GbE
  • 16-bit GPIO
  • Support 4G/5G (M.2 B Key + Nano SIM Holder) Module, Wi-Fi6 Module (M.2 E Key)
  • 12~36V DC-in with OCP/OVP
  • Remote Power Switch Design


 Model – HM-5002S (vPRO Model)
– HM-5004S (Default)
– HM-5007S (Essential Model)
 General
 Certification – FCC, CE, ROHS
 Dimensions – 216.8 x 124 x 86mm (W x D x H)
 Mounting – Wall Mount, Din Rail Mount
 Power Requirements – 12 ~ 36VDC
 Power Consumption – Change according to CPU
 OS Support – Windows 10/11, Linux
 Hardware
 BIOS – AMI 128Mbit Flash BIOS
 CPU – HM-5002S (8365Ue, vPRO Model): Intel® Whiskey Lake Mobile U i5-8365Ue
– HM-5004S (8265U, Default): Intel® Whiskey Lake Mobile U i5-8265U
– HM-5007S (4305Ue, Essential Model): Intel® Whiskey Lake Mobile U Celeron 4305Ue
 Memory – 2* SO-DIMM DDR4 2400/2133 Dram (Max 64GB)
 Graphics – Intel® UHD Graphics (by CPU)
 Ethernet – 1* Intel® i219LM GbE
– 5* Intel® i211V GbE
 Storage – 1* 2.5” external cold-swap SATA3 bay
– 1* M.2 M key (2242/2280 size, SATA or NVMe interface for SSD)
 Expansion – 1* M.2 E key (2230 size, CNVi interface for WIFI/BT)
– 1* M.2 B key (3042/3052 size for 3G/4G/5G Module)
 Front I/O Interface
 Serial Port – 2* RS-232/422/485 with DB9 connectors, automatic RS-485 data flow control
 Display – 1* HDMI 1.4b, support 4096 x 2304@30Hz
– 1* DP 1.2, support 4096 x 2304@60Hz
 LAN – 6* RJ45, 10/100/1000 Mbps
 GPIO – 16 bit GPIO (5V/12V)
 USB – 2* USB3.0
– 2* USB2.0
 LED – 1* Power LED
– 1* HDD LED
 Power Button – 1* power button (Power LED)
 Side I/O Interface
 Power Connector – 1* 3 Pin, terminal Block with lock for Main board
 Front Power Button – 1* 2Pin for remote power switch function
 Environment
 Temperature – Operating：-10 ~ 50°C
– Storage：  -20 ~ 70°C
 Relative Humidity – 10 ~ 90% RH, non-condensing
 CE/LVD/FCC Protection – EN 55032 : 2015
– EN 55035 : 2017
– EN 61000-3-2 : 2019
– EN 61000-3-3 : 2013 + A1 : 2019
– EN 62368-1:2014 + A11 : 2017
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
Datasheet Download (PDF)
