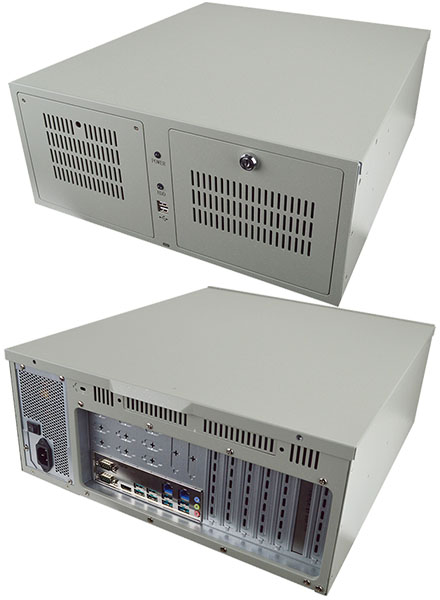

Jetway HB190MA3H-R680-AI4 (Intel R680E Chipset, LGA1700, DDR5-4800Mhz) [Intel HAILO-8 / 104 TOPS]

Jetway HB190MA3H-R680-AI4 (Intel R680E Chipset, LGA1700, DDR5-4800Mhz) <b>[Intel HAILO-8 / 104 TOPS]</b>
  • Intel R680E Chipset !
  • 2x LAN !
  • 8x USB3.2 !
  • HAILO-8 Card !

AI Edge Server with options of 52 TOPs and 104 TOPs AI PCIe Module. Intel® R680E chipset supports LGA 1700 socket for 12 th /13 th Core™ i9/i7/i5/i3 Pentium® Processor with DDR5 4800MHz up to 128GB memory, AIPC

  • Intel® 13th LGA1700 Socket Processor
  • Intel® R680E Chipset
  • 4* DDR5 4800MHz Long-DIMM up to 128 GB
  • Hailo-8 expansion card, up to 52/104 TOPS
  • 2* 2.5GbE, 8* USB3.2 (Gen.2), 1* HDMI
  • 4* SATAIII support HOT SWAP
  • Dimensions: 480* 430* 177mm
  • ATX 500W POWER




Share

2929.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Model – HB190MA3H-R680-AI4 (2* HAILO-8™ Card/104 TOPS)
CPU/Chipset – Intel® 13th LGA1700 Socket Core i9/i7/i5/i3/Pentium/Celeron Processor (Max. 125W TDP, 240A)
– Intel R680E Chipset
MB Model – MA3H-R680 (TPM2.0, ATX, 305* 244mm)
AI Accelerator – Model: ADPIE8AIHLA (144.7* 69mm)
– 1/2* HAILO-8™ Card (by model)
– PCIe Gen.3 x8 interface
BIOS – AMI Flash ROM BIOS
*Support recover crashed BIOS data tool by a USB flash pen driver:
1. Using JetBIOS SW back up tool with any external USB ports
2. Using JetBIOS HW recovery tool with specific USB port (internal USBX)
Memory – 4* Dual CH DDR5 4800MHz Long-DIMM up to 128GB support ECC
Network – 1* Intel i225-LM 2.5GbE
– 1* Intel i225-V 2.5GbE
Graphics – Intel® UHD Graphics, shared memory
– 1* HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
Audio – HD audio: Realtek ALC888S
Storage – 1* M.2 M-key (2242/2280, PCIe Gen.4 x4) support NVME
– 1* M.2 M-key (2242/2280, PCIe Gen.4 x4/SATA Interface) support NVME
– 4* 2.5”/3.5” Device (4 HDD TRAY Design,support HOT SWAP)
Expansion – 1* M.2 E-Key (2230, PCIe Gen.3 x1/USB2.0 interface) support CNVi for WiFi
– 1* M.2 B-Key (3042/3052, PCIe Gen.3 x1/USB3.2 Gen.2/USB2.0 interface) for 4G/5G
– 2* PCIe x16 GEN4 (1 x16 signals or 2 x8 signals) for Graphic card
Rear Panel I/O – 8* USB3.2 (Gen.2)
– 2* LAN
– 1* HDMI
– 2* COM (1* RS232/422/485 support 5V/12V TTL, 1* RS232)
– 1* Line-in, Line-out, MIC
Front Panel I/O – 1* Power SW
– 1* Reset SW
– 1* Power LED
– 1* HDD LED
– 2* USB2.0
Internal Connector – SIM Card Holder
– 1* 8-bits GPIO
Power Source – Power: ATX 500W
– MB: ATX 24pin + 8pin
Compliance – CE, FCC, LVD, RoHS, ErP Ready
Dimensions – System: 480(W)* 430(D)* 177(H) mm
– Net Weight: 5.8KG
– Gross Weight: 6.8KG
Temperature – Operating Temperature: 0 ~ 50° C
– Storage Temperature: -40 ~ 85° C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)
OS Support – Windows 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
